Smart Wall
Smart Wall is a thermal shop front screen and door system suitable for all types of ground floor treatment where enhanced thermal performance is required. The system is ideal for use in schools, colleges and other educational buildings.
Smart Wall has been successfully tested to PAS 24:2012, LPS 1175 level 2 and BS EN 1627 Level 3 for enhanced security performance making the door one of the best performing fully thermally broken screen and entrance doors available in the UK. Screen work is either beaded or pocket glazed. Smart Wall doors are weather rated to BS 6375 and are available with anti-finger trap door sections and drainable low thresholds.
All profiles feature polyamide barriers to maximise thermal performance and can be internally or externally glazed. Unlike non-thermal alternatives, Smart Wall is available in dual colour from an extensive range of standard and non-standard finishes. Smart Wall complies with the latest requirements of Document L for thermal transmittance.
specification
Brand
Smart-Wall
Material
Aluminium Polyamide
Dual Colour
Yes
Thermally Broken
Yes
NBS Available
Yes
performance
U Value
1.8W/m²K (Doors) 1.4W/m²K (Screen)
Air
Class 2, 300Pa (Doors) Class 4, 600Pa (Screen)
Water
Class 7a, 150PA (Doors) Class 9a, 600Pa (Screen)
Wind
Class A5, 2000Pa (Doors) Class A4, 1600Pa (Screen)
Document L Compliant
Yes
Kitemark
Yes
BS 6375-1:2009
Yes
PAS 24:2012
Yes
Gallery

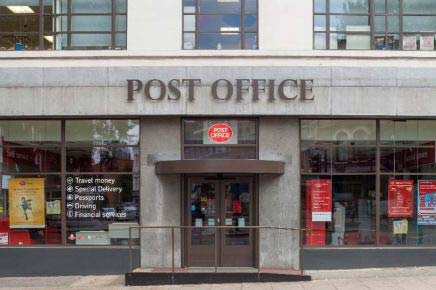

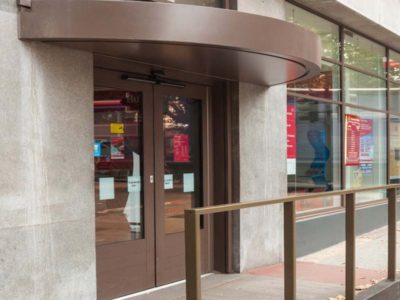

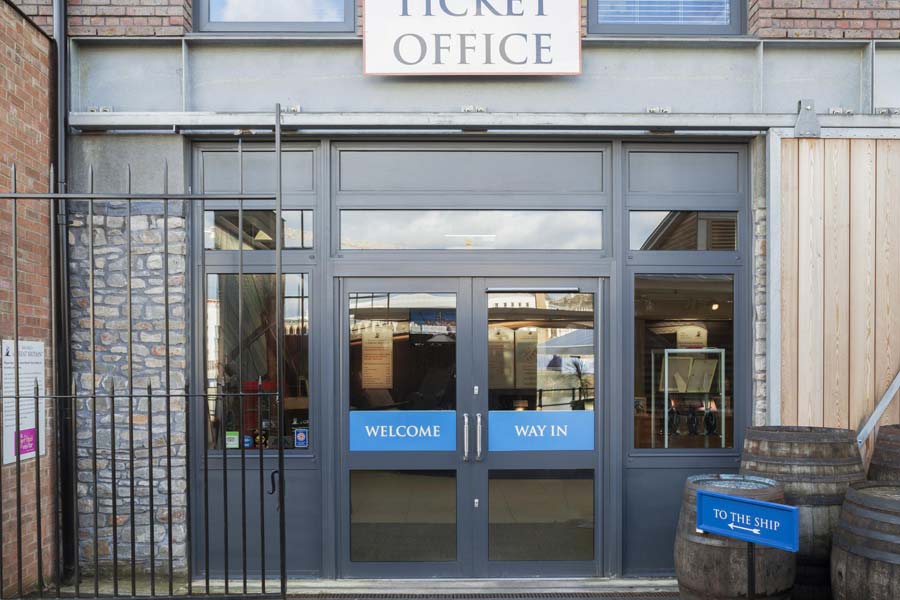

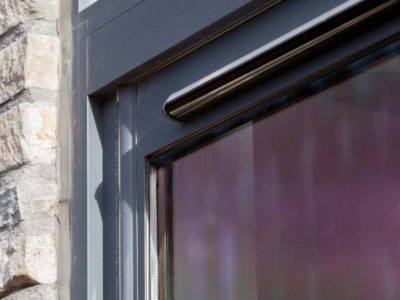

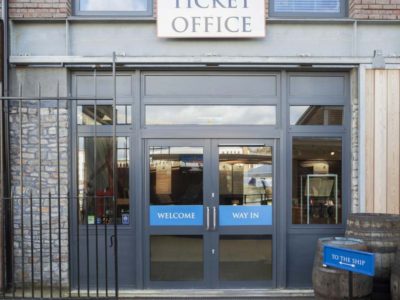

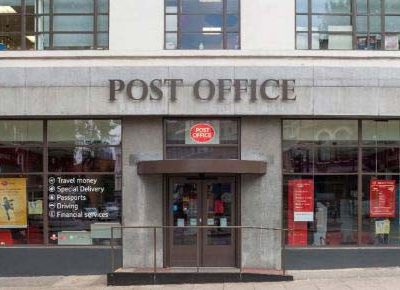

Smart Walls are a stunning feature window with optimum thermal and security performance
FRAME SPECIFICATIONS

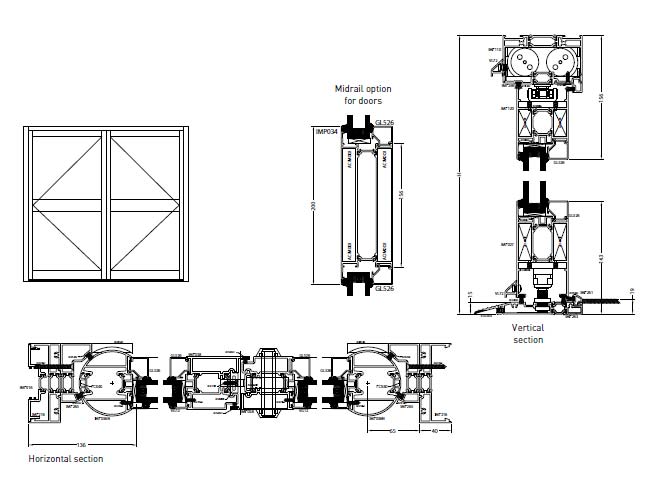

Double Rebated Door with Anti-finger Trap
Double Door with Anti-Finger Trip
Key Features
Security Grade 6 Lock
Fitted with a Security Grade 6 Locking Mechanism so you can have peace of mind you’re protected to the utmost standards
Polyamide Thermal Break
Thermally Broken Low Threshold allows for U Values of 1.8 W/m2k
Anti-finger Trap
Available with Anti-finger Trap Door Systems, perfect for use in Educational Buildings
Double or Triple Glazed
Available Double or Triple Glazed for ultimate efficiency
Locking Bolt Withstands 10kN
Fitted with a Locking Bolt that withstands 10kN side load

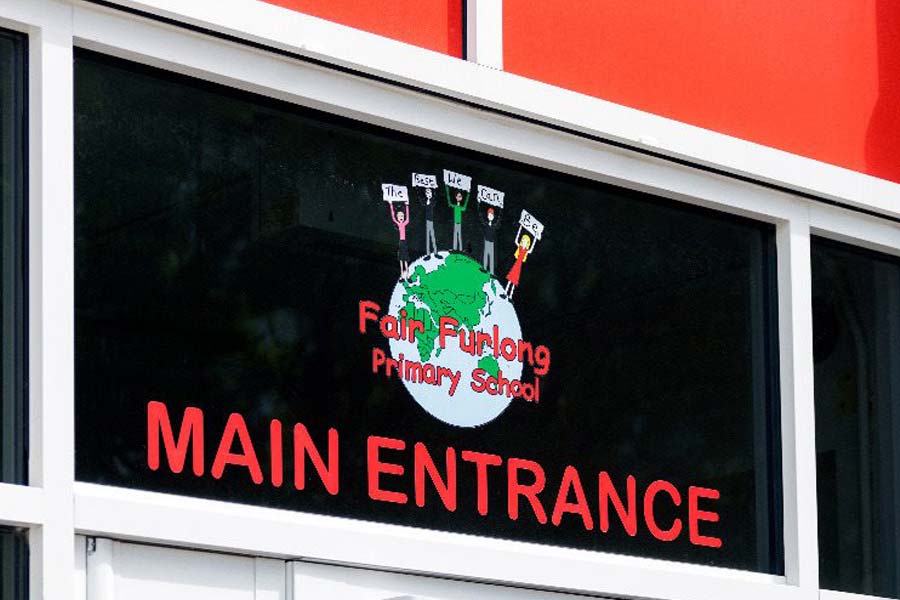

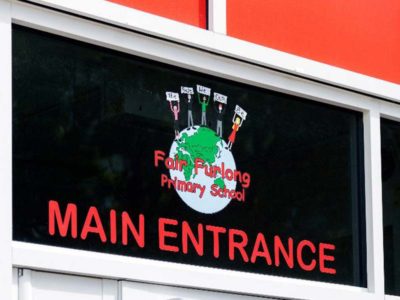

Our Smart Walls feature an anti-finger trap, making them ideal for educational buildings / applications
Colour Options
Sensations
Colours with excellent design qualities
Velour White
Frost White
Dune
Sand
Caramel
Mars Red
Basque Red
Sienna Brown
Cocoa Brown
Chestnut Brown
Silver Grey
Diamond Grey
Platinum Grey
Desert Grey
Antique Grey
Vulcan Black
Obsidian Black
Provence Green
Olive Green
Anthracite Grey
Amazon Green
Steel Blue
Sky Blue
Ocean Blue
Cotswold
The perfect colour palette for traditional projects and conservation areas
Burford White
Bibury Stream
Bath Stone
Fairford Tile
Slad Stone
Burton Cream
Cheltenham Stone
Painswick Grey
Moreton Ground
Cotswold Green
Tetbury Field
Wotton Olive
Chedworth Green
Westonbirt Leaf
Stroud Sky
Naturals
Inspiring colours and finishes for contemporary architecture and restoration projects
White
Off-White
Gloss White
Cream
Brown
Dark Brown
Grey
Dark Grey
Anthracite Grey
Textured Anthracite
Dark Blue
Dark Green
Dark Red
Black
Alchemy
Combining the best of anodised and powder coated finishes
Golden Beach
Gold Pearl
Bronze
Silver Grey
Titanium Grey
Storm Grey
Steel Grey
Black
Smarts Architectural Aluminium
Smarts offer an extensive range of architectural aluminium colours and finishes.
Request your FREE Smarts Colours and Finishes Guide today by calling us on 01273 677545.
Want a bit more colour?
We also offer a colour matching service, so you are able to match our products to any RAL Colour.
This comes with a comprehensive 25 year Guarantee for your peace of mind.
Hardware Options
Handle Options
