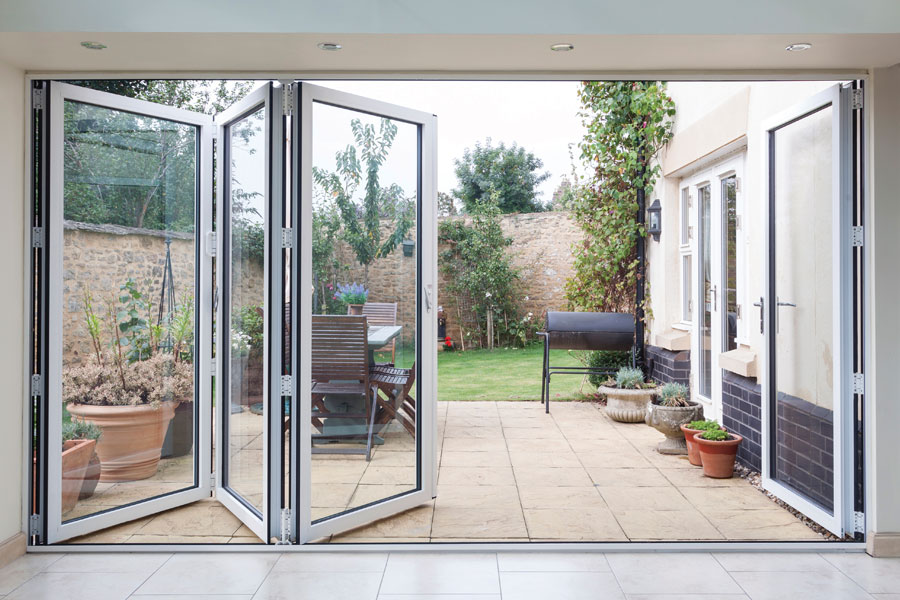

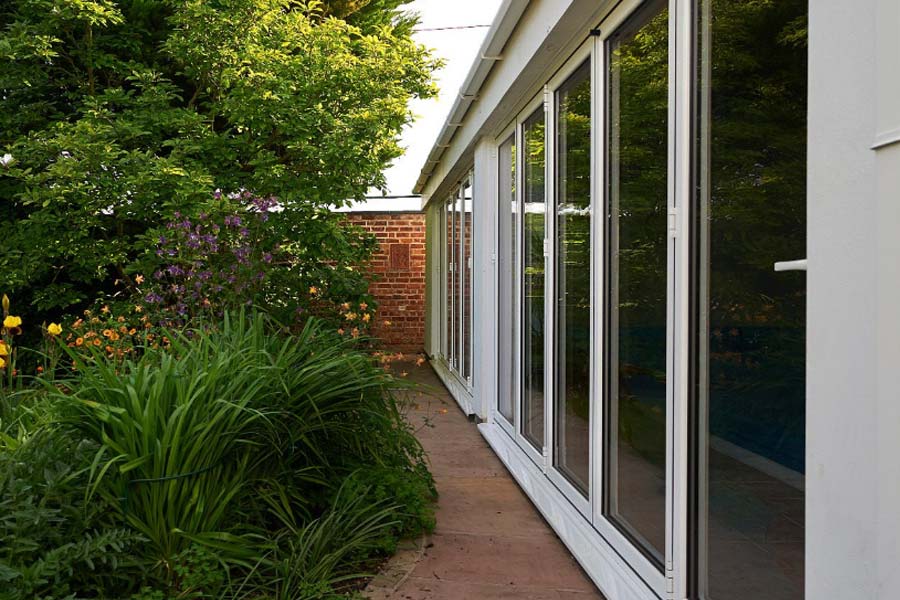

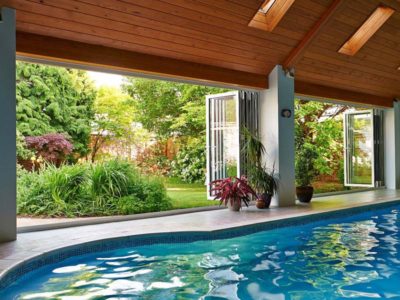

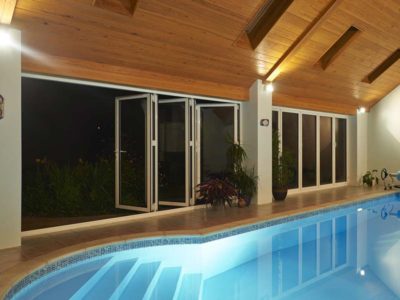

Smarts Visofold 1000 Bi-folding Door Systems are an ideal alternative to Patio Doors, creating clear openings, allowing homeowners to make the most of a room with a view and letting the garden flow into the space.
With smooth sliding operation, Bi-folds slide effortlessly due to the bottom fitted dual rollers running on a dual track. They also incorporate nylon guide rollers at the top which ensures positive and easy movement of the individual door panels during the slide and fold operation. Traffic doors operate lever/lever handles with all intermediate panels utilising fold flat or ‘D’ handles.
These doors feature polyamide thermal breaks, which enhances profile thermal performance and overall ‘U’ Values. EPDM high quality gaskets and weather brushes aid weather resistance and comply with the requirements of Building Regulations Document L 2010.
Brand
Visofold
Material
Aluminium Polyamide
Dual Colour
Yes
Thermally Broken
Yes
NBS Available
Yes
U Value
1.5W/m²K using 1.0 W/m²K centre pane
Air
Class 4, 600Pa
Water
Class E, 750Pa
Wind
Class 4, 1800Pa
Document L Compliant
Yes
BS 6375-1:2009
Yes
PAS 24:2012
Yes
2 Pane
Type 1
Type 2
Type 2 Reversed
3 Pane
Type 1
Type 1 Reversed
Type 2
Type 2 Reversed
4 Pane

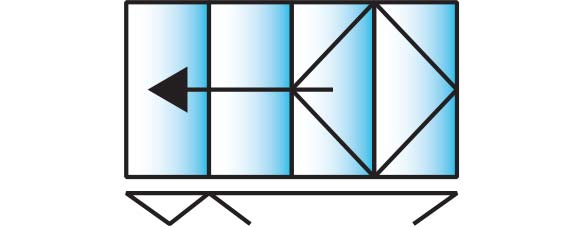

Type 1
Type 1 Reversed
Type 2
Type 3
Type 3 Reversed
5 Pane
Type 1
Type 1 Reversed
Type 2
Type 2 Reversed
Type 3
Type 3 Reversed
6 Pane

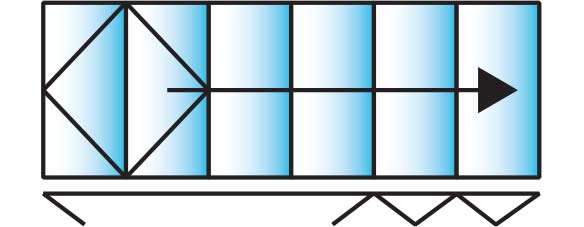

Type 1

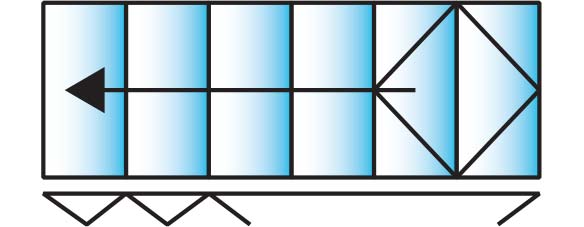

Type 1 Reversed

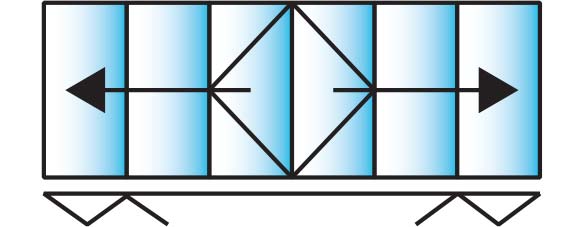

Type 2
Type 3

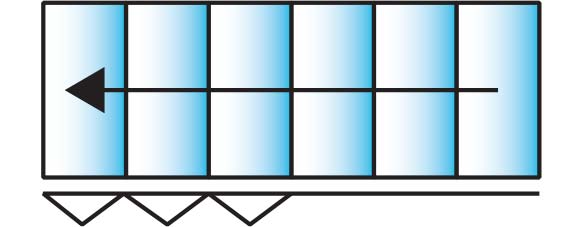

Type 3 Reversed

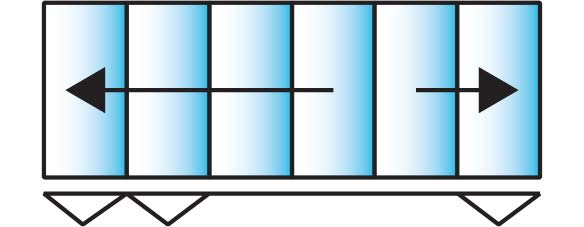

Type 4

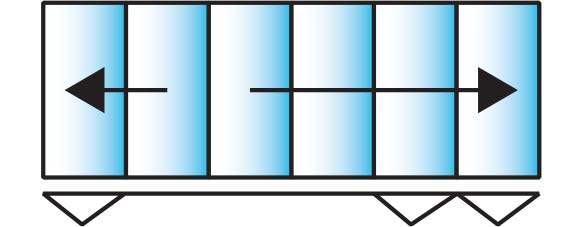

Type 4 Reversed
7 Pane
Type 1
Type 1 Reversed
Type 2
Type 2 Reversed

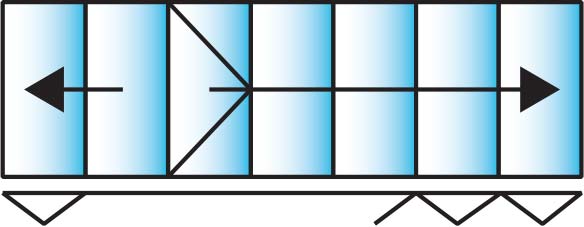

Type 3

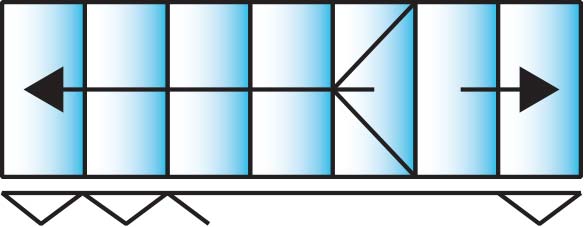

Type 3 Reversed
Type 4
Type 4 Reversed

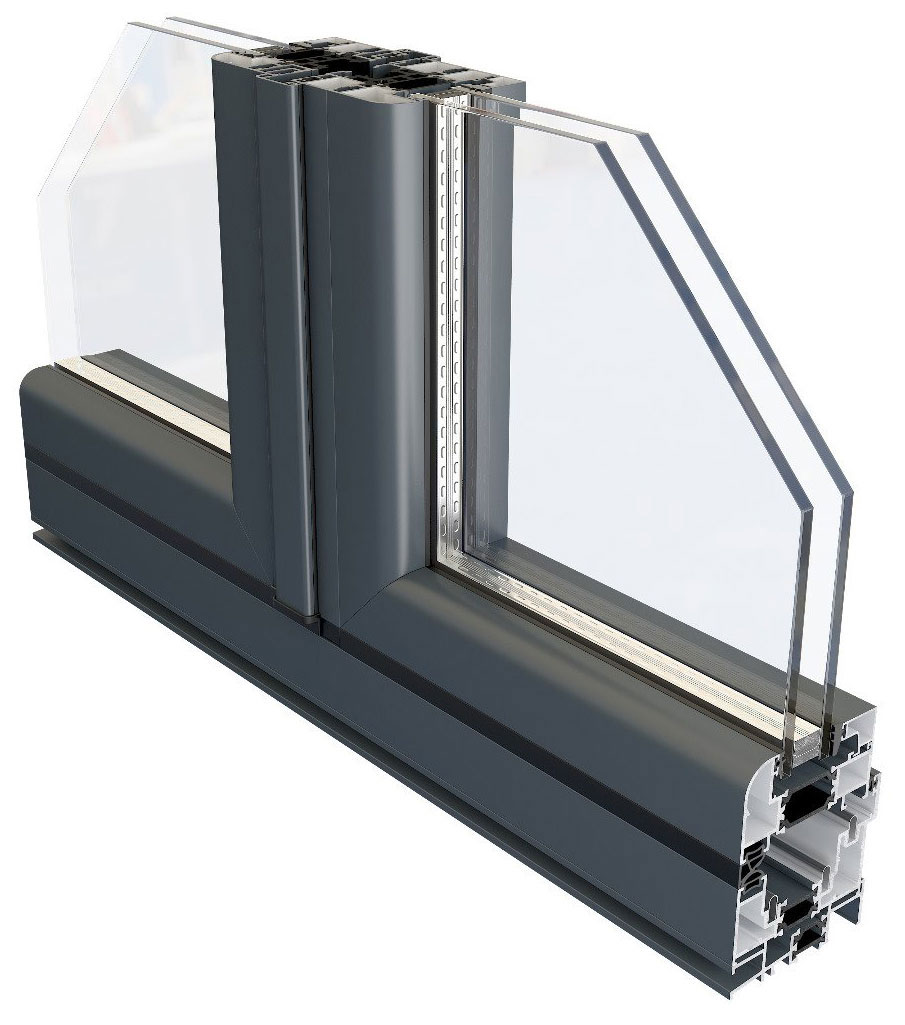

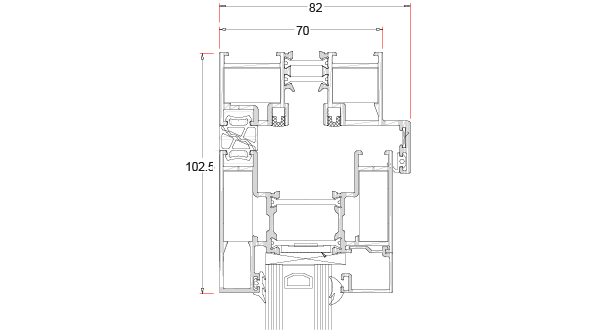

Slim-line 70mm Polyamide thermally broken aluminium profile, meeting stiles of just 132mm
Four stainless steel wheel assemblies run on a dual stainless steel track, ensuring graceful operation and stability
Lock mechanism available with a domestic style ‘lift up’ handle and an adjustable, one piece keep
High security shootbolt handles to intermediate panels and multi-point hook locks to traffic doors
All hinges can be colour matched to any available door colour
Slim-line 70mm Polyamide thermally broken aluminium profile, meeting stiles of just 132mm
Four stainless steel wheel assemblies run on a dual stainless steel track, ensuring graceful operation and stability
Lock mechanism available with a domestic style ‘lift up’ handle and an adjustable, one piece keep
High security shootbolt handles to intermediate panels and multi-point hook locks to traffic doors
All hinges can be colour matched to any available door colour

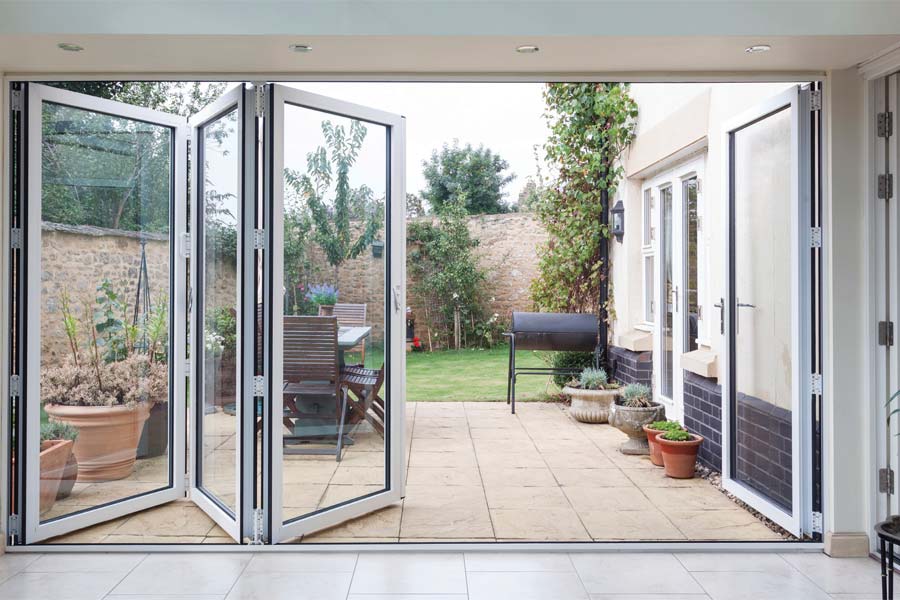

Visofold 1000 features a choice of internally or externally folding panels, offering uninterrupted views of the garden.
Sensations
Colours with excellent design qualities
Velour White
Frost White
Dune
Sand
Caramel
Mars Red
Basque Red
Sienna Brown
Cocoa Brown
Chestnut Brown
Silver Grey
Diamond Grey
Platinum Grey
Desert Grey
Antique Grey
Vulcan Black
Obsidian Black
Provence Green
Olive Green
Amazon Green
Steel Blue
Sky Blue
Ocean Blue
Cotswold
The perfect colour palette for traditional projects and conservation areas
Burford White
Bibury Stream
Bath Stone
Fairford Tile
Slad Stone
Burton Cream
Cheltenham Stone
Painswick Grey
Moreton Ground
Cotswold Green
Tetbury Field
Wotton Olive
Chedworth Green
Westonbirt Leaf
Stroud Sky
Naturals
Inspiring colours and finishes for contemporary architecture and restoration projects
White
Off-White
Gloss White
Cream
Brown
Dark Brown
Grey
Dark Grey
Anthracite Grey
Textured Anthracite
Dark Blue
Dark Green
Dark Red
Black
Alchemy
Combining the best of anodised and powder coated finishes
Golden Beach
Gold Pearl
Bronze
Silver Grey
Titanium Grey
Storm Grey
Steel Grey
Black
Smarts offer an extensive range of architectural aluminium colours and finishes.
Request your FREE Smarts Colours and Finishes Guide today by calling us on 01273 677545.
We also offer a colour matching service, so you are able to match our products to any RAL Colour.
This comes with a comprehensive 25 year Guarantee for your peace of mind.
