Origin Patio Sliding Door

Home - Doors - Patio Sliding - Origin Patio Sliding Door

Origin Patio Sliding Door

The OS-29, OS-44 and OS-77

A modern take on the traditional patio door, the Origin Patio Slider OS-29, OS-44 and OS-77 are the perfect fit for any type of home. Made completely bespoke, there are three sightline options available. The OS-29 is the smaller of the three, with sightlines of just 29mm, maximising glass and the level of natural light which can flood in. With sightlines of 44mm and 77mm, the Patio Slider still possesses some of the slimmest sightlines whilst providing a more traditional style of patio system, with an injection of effortless elegance.

Made to your exact specification

Your home is unique to you, so your doors should enhance its character while fulfilling your needs. Origin’s sliding doors are made bespoke to suit you.

System Type – Choose from either the OS-29, OS-44 or the OS-77 Patio Sliding Door.
Overall Size – The size of your aperture. We will measure this for you.
Configuration – How many individual doors you want in your configuration.
Colour – Choose from over 150 RAL colours to suit your home style.

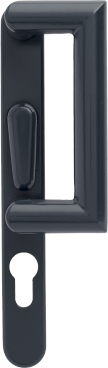

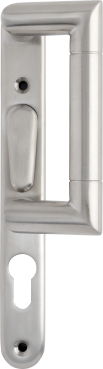

Handle Style and Colour – Consider the model and subsequent colour of your handles.

origin-aluminium-patio-sliding-door-featured-image

Benefits of Origin Products

Proudly manufactured in the United Kingdom at origin’s Buckinghamshire facility.

Discover our industry leading guarantees for complete peace of mind.

Our doors help your house stay warm in winter and cool in the summer.

We’re committed to your safety through compliance and accreditation initiatives.

A wide range of colour and finish options ensures that there is a style to suit your home.

Find out how our unbeatable delivery promises can help your project.

All Origin products are tailor-made to your requirements by a highly skilled team.

Origin doors benefit from the strength, resilience and versatility of our premium grade aluminium.

Expert engineering allows you to focus on enjoying the products rather than taking the time to maintain them.

Comparing the OS-29, OS-44 and OS-77…

With three sightlines to choose from, over 150 colours and multiple other customisation options, each of Origin’s sliding doors offers something unique.

	OS-29	OS-44	OS-77
Interlocker Sightline Sizes denote glass to glass measurements	29mm	44mm	29mm
Sizes – Height (overall size)	Min. 1480mm - Max. 2600mm	Min. 2005mm - Max. 2600mm	Min. 1480mm - Max. 2600mm
Sizes – Width (overall size)	Min. 1463mm - Max. 11929mm	Min. 1800mm - Max. 11803mm	Min. 1463mm - Max. 11929mm
Popular Colours	7015M, 7016M, 7021M, 9005M, 9007M, 9910G, 9910M	7015M, 7016M, 7021M, 9005M, 9007M, 9910G, 9910M	7015M, 7016M, 7021M, 9005M, 9007M, 9910G, 9910M
Glazing Options	Semi-dry glazing (glass units are bonded to the frame on site)	Dry glazing (glass units are fixed to the frame using gaskets)	Semi-dry glazing (glass units are bonded to the frame on site)
U-Value	Up to 1.3W/m2K	Up to 1.3W/m2K	Up to 1.3W/m2K
Guarantee	Standard - Up to 20-years Marine Environment – 10‑years (frame) & 5‑years (hardware)	Standard - Up to 20-years Marine Environment – 10‑years (frame) & 5‑years (hardware)	Standard - Up to 20-years Marine Environment – 10‑years (frame) & 5‑years (hardware)

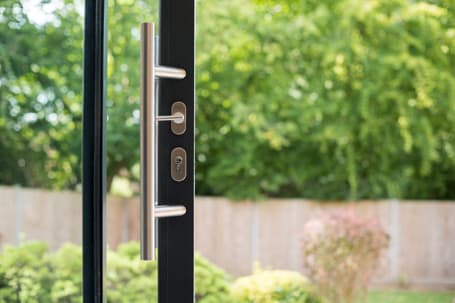

Stay Secure and Safe..

Locking directly into the door jamb, each of the handle and lock combinations available on the Patio Slider has been meticulously tested repeatedly to ensure they will resist common housebreaking techniques.

Origin’s locks have been redesigned from the ground up to accommodate even stronger shootbolts than before – meaning that both OS-29 and OS-77 exceeds PAS 24:2016 Enhanced Security Standards.

origin-aluminium-patio-sliding-door-security

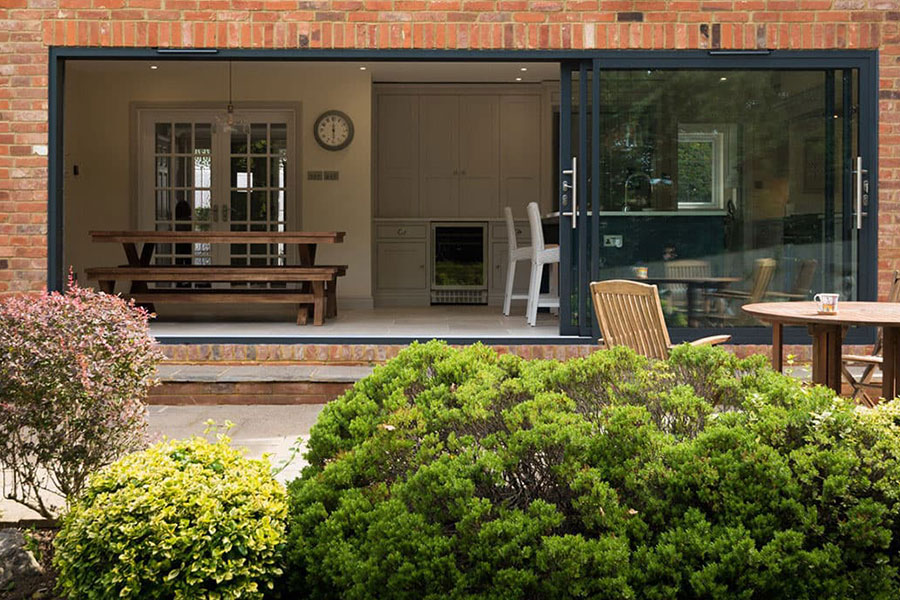

A size to suit your needs…

The Origin Patio Slider can be installed in apertures as wide as 11.9m in a range of configurations to suit your home and spatial requirements. Whether it’s two panels for a small opening, or up to six panels for a wide opening, the Patio Slider can completely transform the look of any room or property type.
